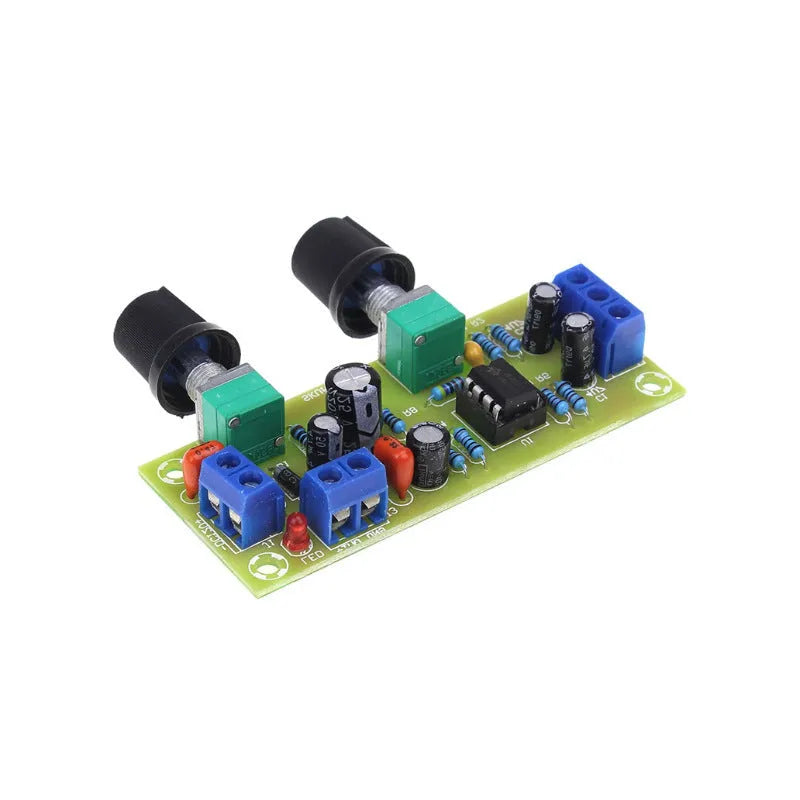

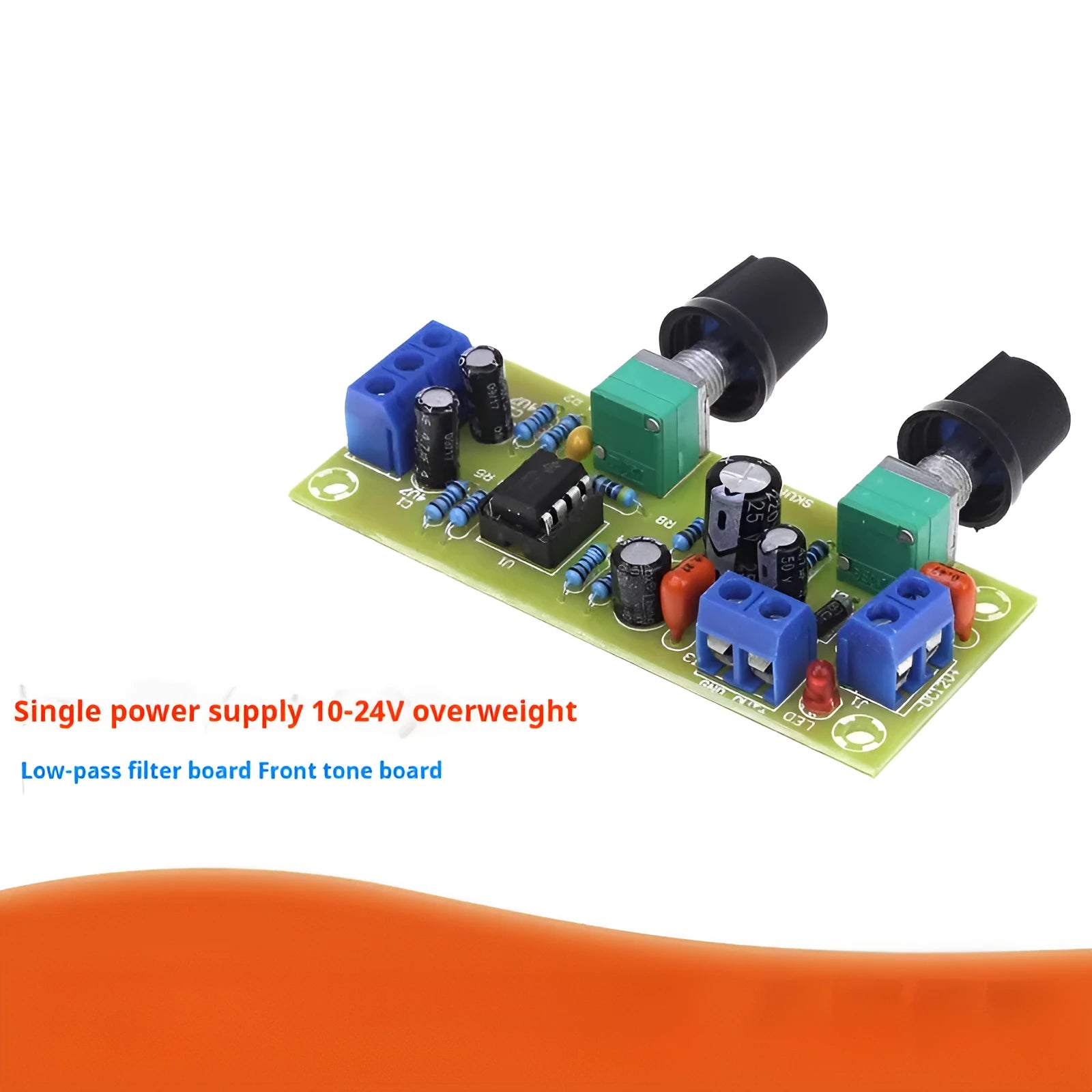

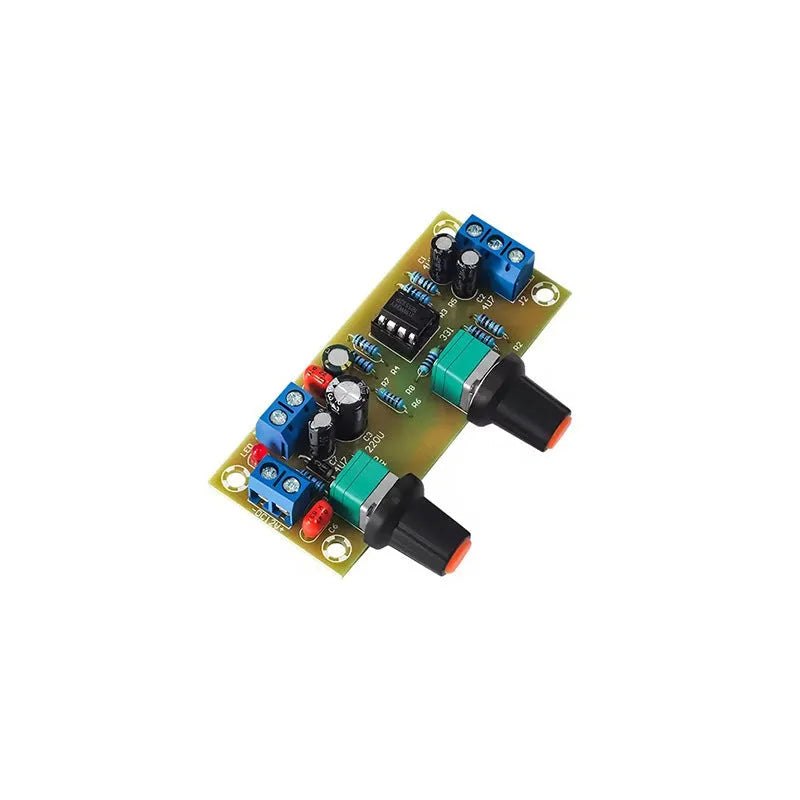

Super Dynamic Bass Boost Front Stage Board for Enhanced Car Audio Low Frequencies

This Super Dynamic Bass Boost Front Stage Board is a dedicated signal processing module designed to integrate into car audio systems, focusing specifically on augmenting the lower end of the frequency spectrum. It accepts a versatile single DC power supply ranging from 10V to 24V, making it compatible with various vehicle electrical systems. By processing mono or dual-channel audio input and outputting a mono signal across a defined range of 22Hz to 300Hz, it provides a targeted solution for enthusiasts and installers looking to strengthen bass response without replacing an entire amplifier or head unit. Its compact, pre-fabricated board format offers a component-level upgrade for custom audio builds.

Features and Construction

This front stage board is defined by its electrical specifications and physical build, centred on reliable performance in an automotive environment.

Material and Build

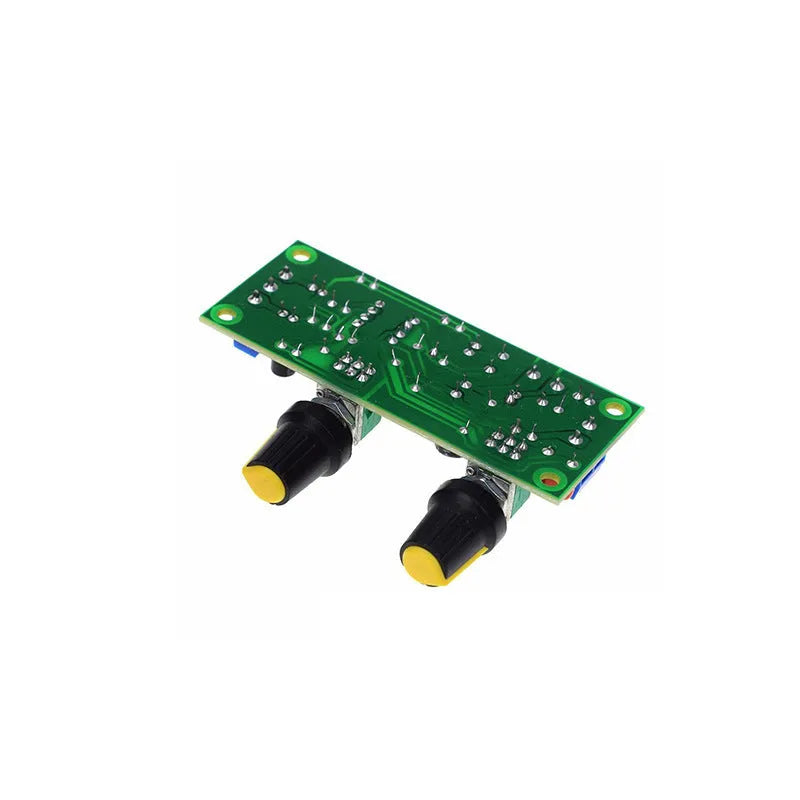

The core of the board is constructed from a super hardness FR-4 fiberglass substrate. FR-4 is a standard material in printed circuit board (PCB) manufacturing, valued for its flame retardancy, strong electrical insulation properties, and mechanical rigidity. This provides a stable foundation for the mounted electronic components, helping to ensure consistent performance and durability against the minor vibrations and temperature fluctuations common in vehicle installations. The board is supplied as a finished unit, ready for integration.

Size and Practical Fit

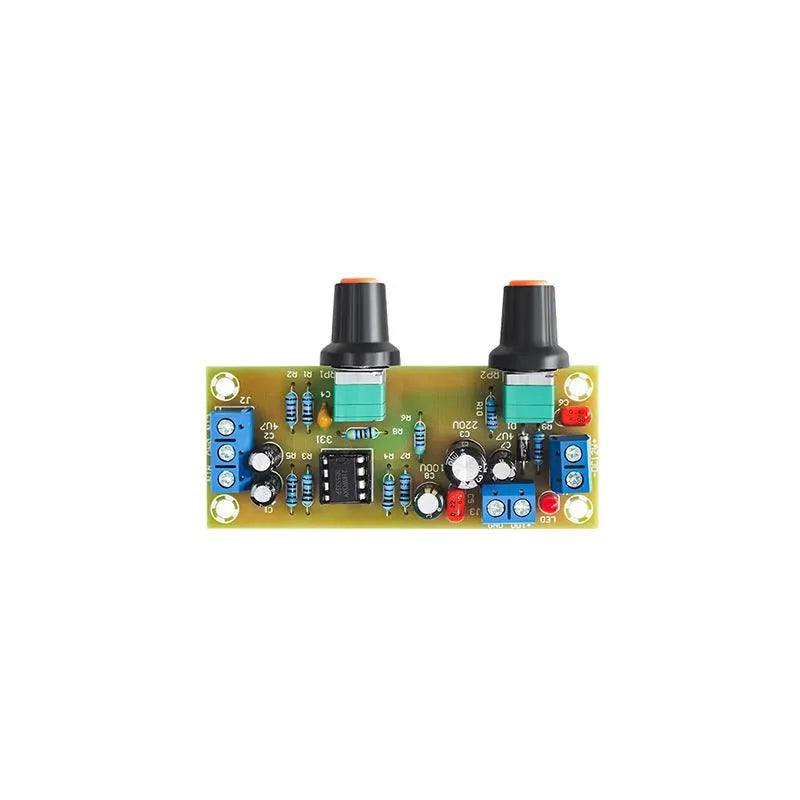

The PCB has precise dimensions of 78mm in length by 32mm in width, with a thickness of 1.6mm, resulting in a net weight of 30g. This compact size facilitates installation within limited spaces in dashboard cavities, centre consoles, or custom enclosures. For secure mounting, the board features fixing holes with a centre-to-centre spacing of 70mm by 24mm and a hole diameter of 3.2mm, designed to accommodate standard M3 screws. Additionally, the potentiometer shafts are spaced 32.5mm apart, ensuring compatibility with matched knob sets and panel cutouts for user adjustment.

Uses and Placement

This board serves a specific function within broader audio systems, suitable for both enthusiast projects and more formal installations.

Event or Professional Use

For professional car audio installers or those building systems for competition or demonstration vehicles, this board offers a modular component for signal processing. Its defined frequency range (22Hz-300Hz) allows it to be tuned as a dedicated band-pass filter or bass boost stage within a multi-amplifier setup. The single power supply requirement from 10-24V simplifies wiring, as it can often be powered directly from the vehicle's accessory or amplifier remote turn-on circuit, reducing the need for additional voltage regulators in 12V systems.

Everyday Home Use

While primarily intended for mobile audio, the board's DC power supply flexibility means it could also be adapted for use in home workshop projects, portable boombox builds, or other DIY audio applications where a 12V or 24V supply is available. Its mono output and focused frequency processing make it suitable for enhancing the low-end in a single-subwoofer setup. Users must provide their own suitable enclosure, wiring, and input/output connections to complete a functional unit.

Benefits and Buying Value

The value of this product lies in its specificity and the practical advantages of its pre-assembled format.

Reuse and Low Maintenance

As a solid-state electronic module built on a robust FR-4 board, it requires no routine maintenance. There are no moving parts to wear out. Its design promotes longevity through stable operation within its specified voltage range. Should a user upgrade their overall car audio system, this dedicated bass boost stage can often be retained and repurposed within the new setup, provided the input and output signal levels are compatible, offering value beyond a single installation.

Why Choose This Product

This board is chosen for its focused functionality: providing a hardware-based bass boost for a specific frequency band. It differs from software EQ adjustments by offering a dedicated analogue or digital processing stage (exact circuitry is not specified) that operates independently of a head unit's built-in controls. For users seeking to add a distinct low-frequency enhancement layer or to correct a specific bass deficiency in their system, this ready-made board can be a more direct and potentially cost-effective solution than purchasing a new amplifier with built-in processing, assuming the user has the necessary installation skills.
