ST7789 1.3-Inch 240x240 IPS LCD Display Module with Adjustable Viewing Direction

This 1.3-inch IPS LCD plug-in module offers makers and electronics enthusiasts a compact, high-quality display solution for embedded projects. With its 240x240 resolution IPS technology, it delivers more vivid colour representation compared to standard TFT LCDs while maintaining a small physical footprint. The square display format with adjustable orientation makes it particularly suitable for compact applications where both visual clarity and space efficiency are important. Whether you're building custom instrumentation, portable devices, or interactive projects, this display module provides the visual interface needed for successful implementation.

Features and Construction

The display combines IPS screen technology with flexible interface options to serve diverse project requirements. Its construction focuses on practical integration for electronics projects while maintaining visual quality within compact dimensions.

Material and Build

Built around a high-definition IPS colour screen, this display module provides enhanced colour quality and viewing angles compared to traditional TFT LCD technology. The IPS (In-Plane Switching) construction allows for more consistent colour representation across different viewing positions, which is particularly valuable for projects where the display might be viewed from varying angles. The ST7789 control chip manages display operations efficiently, supporting the 240x240 resolution while maintaining compatibility with multiple interface standards.

Size and Practical Fit

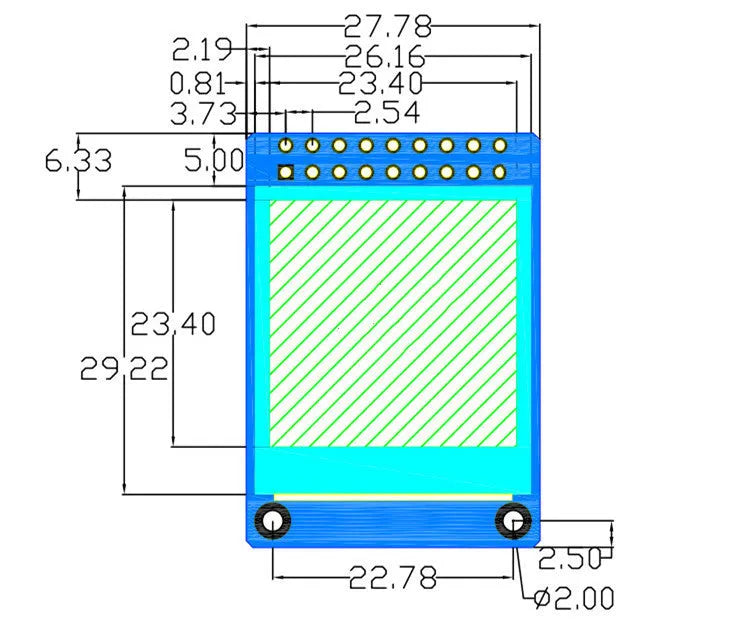

Measuring just 27.78 x 39.22mm overall, this compact display module fits comfortably in space-constrained projects. The active display area measures 23.4mm square, providing adequate viewing space relative to the module's footprint. This balance between display size and overall dimensions makes it suitable for portable devices, compact instrumentation, and projects where panel space is limited. The square format with adjustable display direction adds flexibility in how information can be presented within your project layout.

Uses and Placement

This display module serves both hobbyist and professional applications where clear visual feedback is required in compact electronics projects. Its technical specifications support reliable operation across different use cases.

Event or Professional Use

For professional electronics applications, the display's wide operating temperature range of -20°C to 70°C allows deployment in varied environmental conditions. This makes it suitable for field equipment, industrial monitoring devices, and outdoor applications where temperature fluctuations occur. The dual interface options (8-bit parallel and 4-wire SPI) provide integration flexibility with different microcontroller platforms commonly used in professional settings. The full viewing direction ensures that information remains visible regardless of installation angle.

Everyday Home Use

In home electronics projects, this display module serves as the visual interface for DIY smart home controllers, weather stations, clocks, and information displays. The vivid IPS colours enhance readability in typical home lighting conditions, while the compact size allows for unobtrusive integration into custom enclosures. Maker projects involving Arduino, Raspberry Pi, or similar microcontroller platforms benefit from the straightforward interface options and clear documentation of specifications. The adjustable display direction helps optimise viewing angles based on where the final project will be positioned in the home.

Benefits and Buying Value

This display module offers practical advantages for electronics projects through its technical specifications and flexible integration options. The combination of features addresses common requirements in maker and professional electronics applications.

Reuse and Low Maintenance

The display's reliable construction and wide operating temperature range support reuse across multiple projects or long-term deployment in finished devices. With no moving parts and solid-state construction, it requires minimal maintenance once properly integrated into a project. The interface options allow for straightforward connection to various microcontroller platforms without requiring complex adapter circuits in most cases. This reduces both initial setup time and potential points of failure in finished projects.

Why Choose This Product

This display module provides a balance of visual quality, physical compactness, and interface flexibility that suits diverse electronics projects. The IPS technology offers colour quality advantages over standard TFT displays, particularly when viewing angles matter in your application. The dual interface support allows adaptation to different microcontroller I/O capabilities without compromising display performance. With clear specifications including exact dimensions, temperature range, and display characteristics, you can confidently integrate it into your project design knowing how it will perform.
