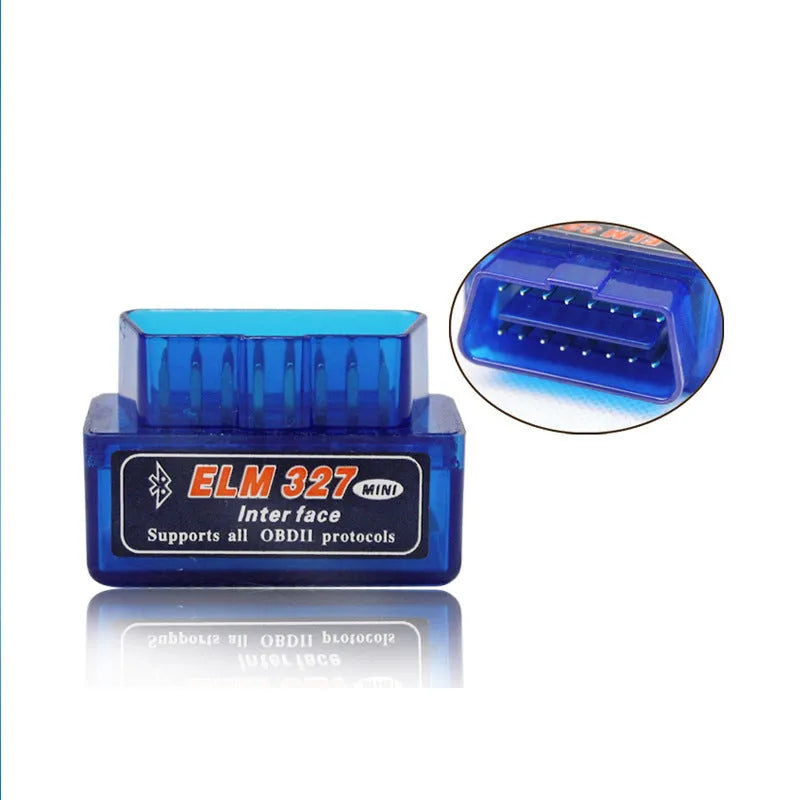

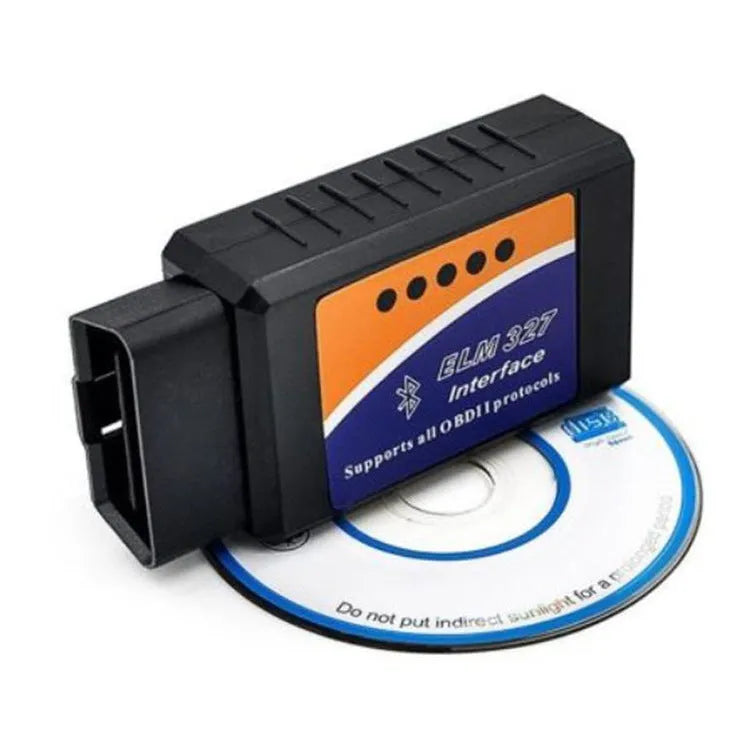

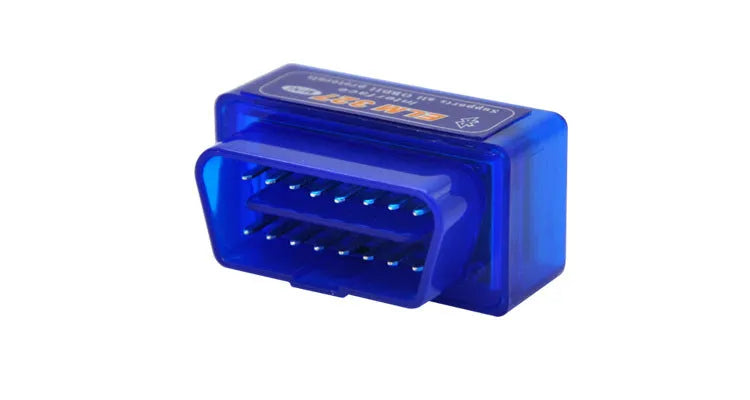

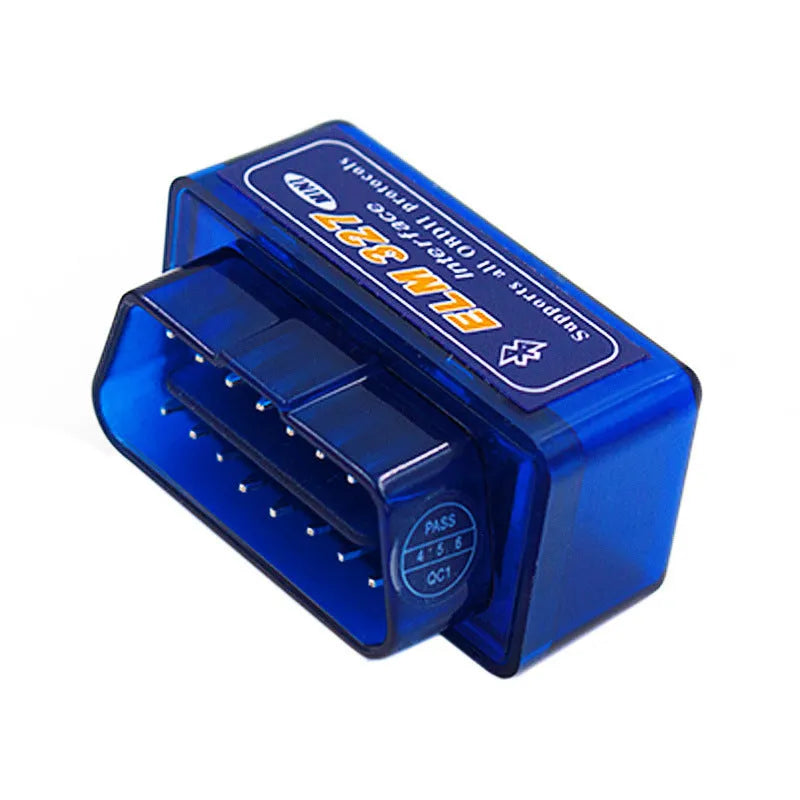

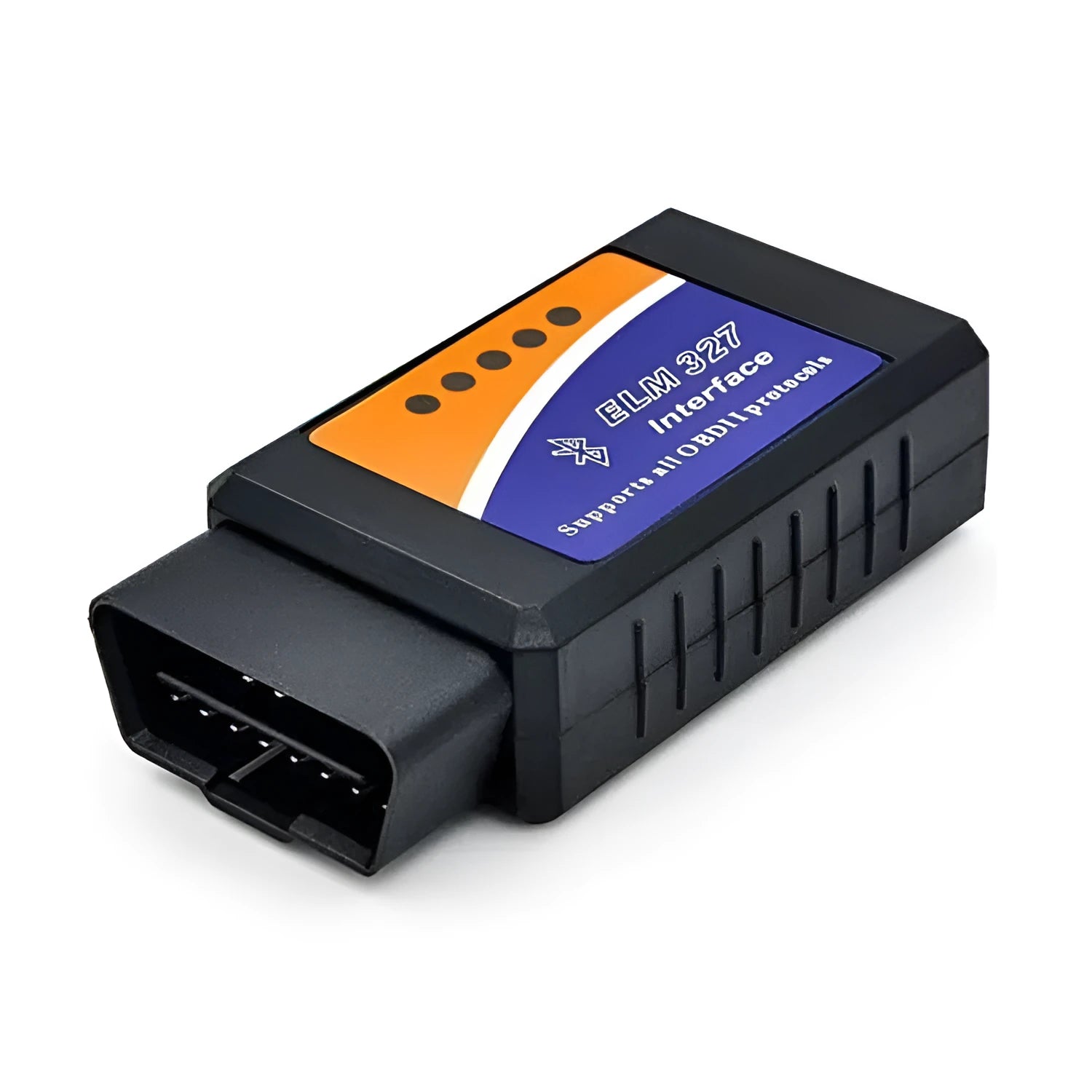

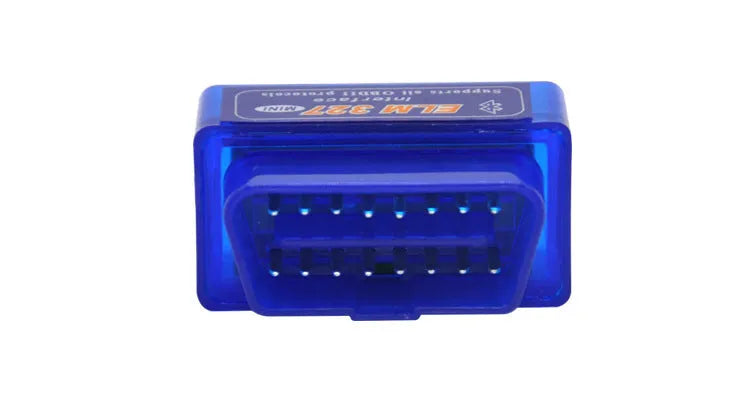

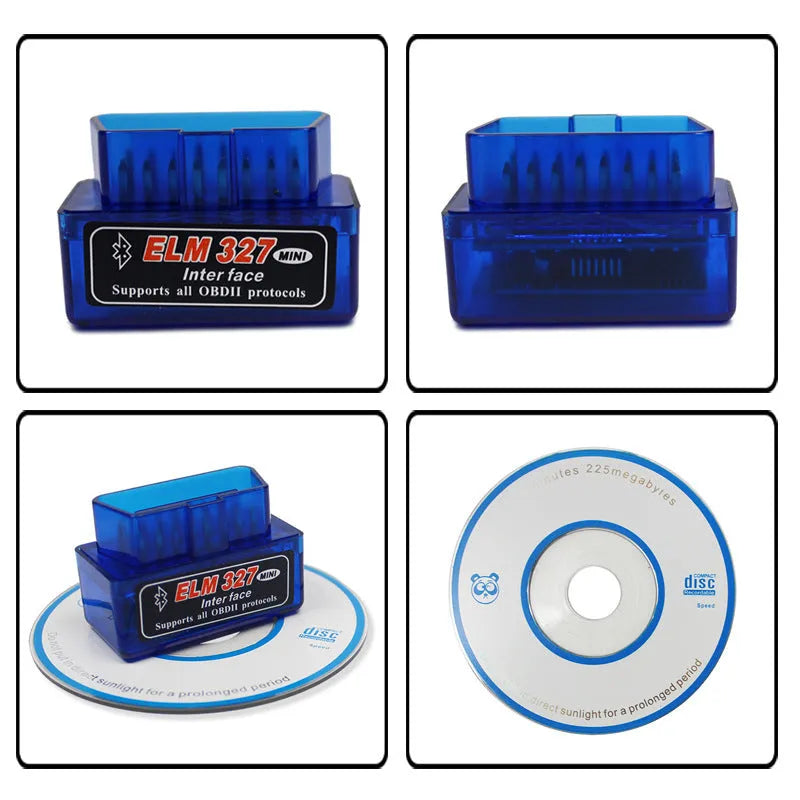

ELM327 Bluetooth OBD2 Scanner: Mini Fault Code Reader for Android and Windows Diagnostics

This ELM327-based OBD2 Bluetooth scanner is a compact diagnostic tool that connects to your car's onboard computer. It allows you to read and clear engine fault codes, providing a cost-effective way to understand why your 'check engine' light is on. By displaying real-time sensor data directly on your Android phone or Windows PC, it turns a smartphone or laptop into a basic vehicle diagnostics station. With support for popular third-party apps like Torque and ScanMaster-ELM, it offers a flexible solution for DIY mechanics and car owners wanting to monitor their vehicle's health.

Features and Construction

This scanner is built around the common ELM327 chipset, providing standard OBD2 protocol communication. Its primary function is to interface between your vehicle's ECU and your chosen display device, translating raw diagnostic data into readable information.

Material and Build

The scanner is housed in a small plastic casing designed to withstand the temperature fluctuations inside a vehicle. It is rated for operation from -40°C to 85°C and in environments with less than 60% humidity, making it suitable for use in most climates. The electronic components are configured for low power consumption, drawing 35mA during operation and 25mA on standby, which minimises drain on the car's 12v electrical system.

Size and Practical Fit

With dimensions of 45mm in width, 25mm in height, and 65mm in length, the scanner is a miniature device. This small form factor allows it to plug into the OBD2 port without obstructing footwell space significantly, making it suitable for permanent installation or temporary use. Its compact size is a key practical advantage for everyday diagnostic access.

Uses and Placement

The scanner serves as a bridge between your car's electronic systems and diagnostic software. Its dual-mode operation provides flexibility, whether you prefer using a mobile app for quick checks or more detailed analysis on a laptop.

Event or Professional Use

For professional mechanics or enthusiasts tracking vehicle performance, the scanner's ability to display live sensor data is valuable. Parameters like engine RPM, coolant temperature, fuel pressure, intake air temperature, and throttle position can be monitored in real time. This data can help diagnose intermittent issues, verify repairs, or simply log vehicle performance during a drive.

Everyday Home Use

For the average car owner, the primary use is reading and clearing fault codes. When the 'check engine' light illuminates, plugging in the scanner and using a compatible app can reveal the specific trouble code (DTC) stored by the ECU. With access to a database of over 3000 generic code definitions, it helps identify whether an issue is minor or requires professional attention, potentially saving on unnecessary garage fees.

Benefits and Buying Value

The value of this diagnostic tool lies in its ability to provide immediate, low-cost access to vehicle information that was once only available through expensive garage equipment.

Reuse and Low Maintenance

The scanner is a reusable tool with no consumable parts. Once purchased, it can be used across multiple vehicles (provided they have a standard OBD2 port, common on cars built after 1996 in the US and 2001 in Europe). It requires no maintenance beyond keeping the connector clean and ensuring compatible software is installed on your phone or computer.

Why Choose This Product

This ELM327 scanner offers a practical entry point into vehicle diagnostics. Its compatibility with a wide range of free and paid software (Android: Torque, DashCommand; Windows: ScanMaster-ELM, PCMSCAN) means you are not locked into one proprietary system. The inclusion of both generic and manufacturer-specific code reading increases its usefulness across different car makes. For anyone wanting to understand their car better or perform basic troubleshooting, this tool provides the necessary hardware connection.
