Electric Lifting Hanger for Projectors: Wireless Remote Control and Ultra-Thin Chassis

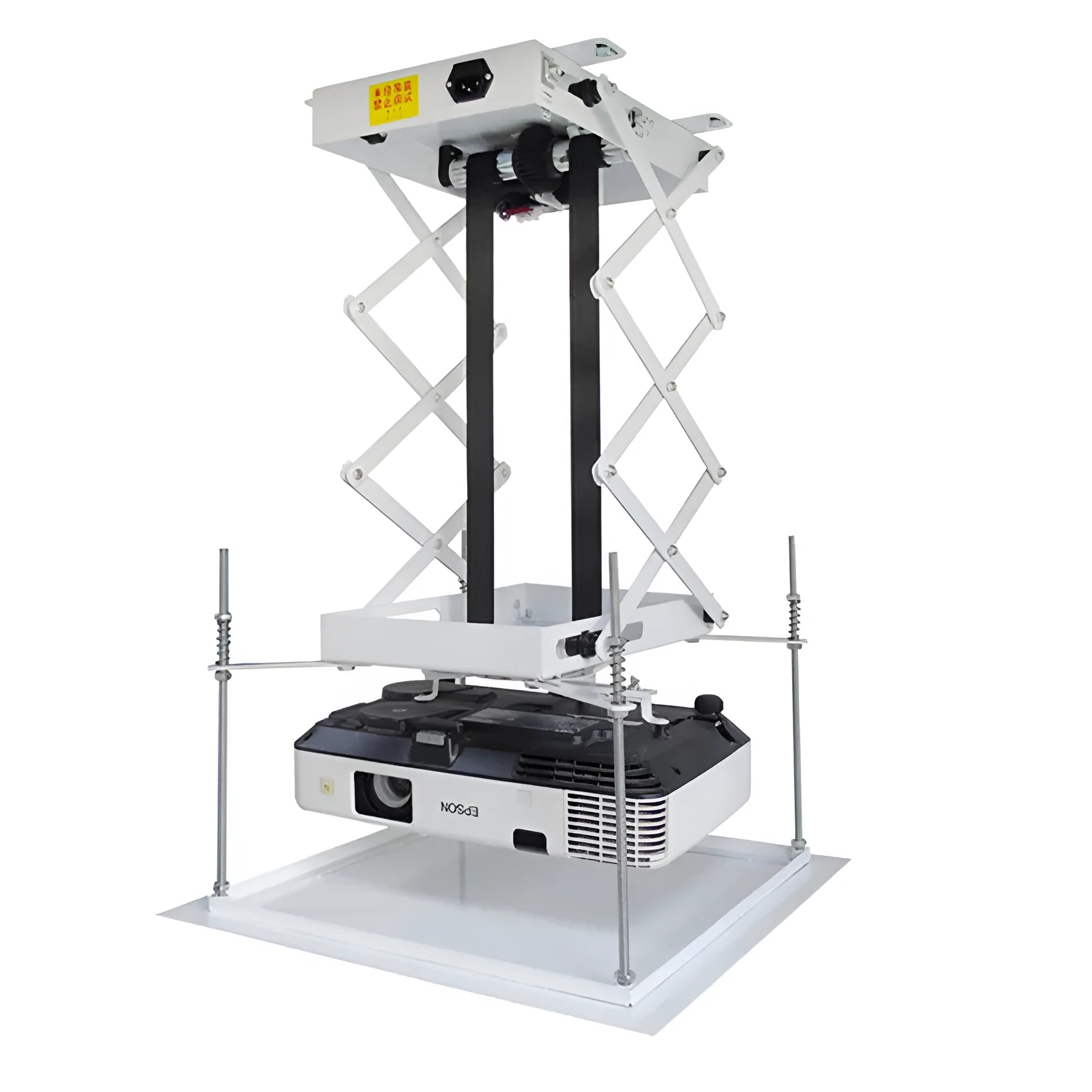

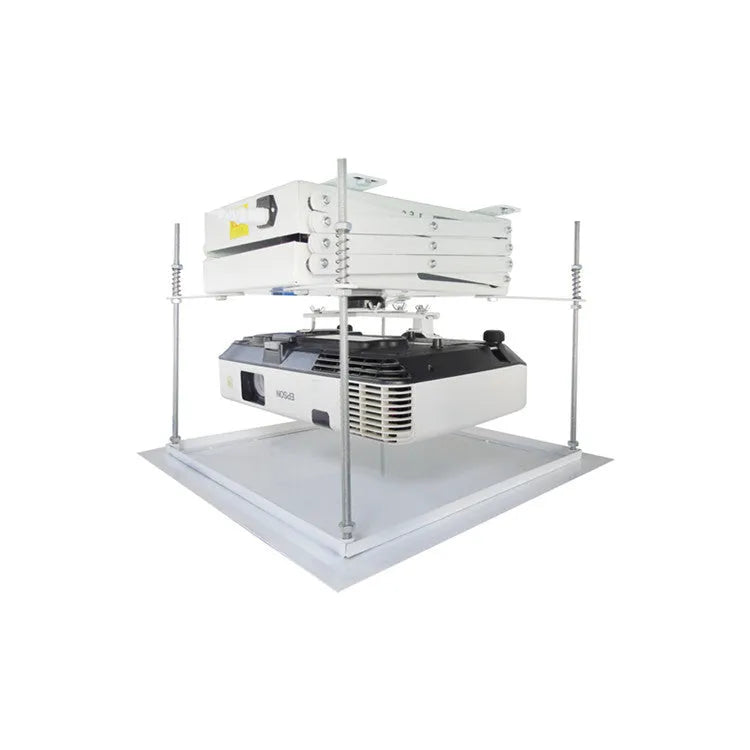

This electric lifting hanger offers a streamlined method for installing a projector on a ceiling, allowing it to be raised for use and lowered for storage. Controlled via a wireless remote, it provides convenient adjustment without the need for manual handling. The unit is built around a synchronous motor and is available with different travel lengths to accommodate various room heights and projector positioning requirements. Its design prioritises a low-profile appearance to blend with the ceiling when retracted.

Features and Construction

The hanger's core functionality is based on a motorised lifting mechanism designed specifically for projectors. Its construction details and specifications determine its practical fit and operational limits.

Material and Build

The product incorporates a synchronous motor rated at 48W power, operating on standard 220V/50HZ electrical supply. This motor drives the lifting mechanism, which has a stated maximum load capacity of 10kg. The build includes a chassis and a lifting claw, with the overall assembly having a product gross weight of 10.5kg, which must be considered during installation.

Size and Practical Fit

The chassis itself has a height of 10cm, contributing to the 'ultra-thin' description for a less obtrusive ceiling presence. The lifting claw adds a further 6cm. When fully extended, the mechanism has an unfolded length of 18cm, to which the height of the projector itself (up to 70cm as per the specification) must be added to calculate total drop. The bottom plate has an outer diameter of 48cm x 48cm and an inner diameter of 42cm x 42cm, with a suggested ceiling opening of 45cm x 45cm for installation.

Uses and Placement

This product is designed for fixed installation in environments where a projector is used regularly but needs to be kept out of the way when not in operation, such as in dedicated home cinema rooms, conference rooms, or lecture halls.

Event or Professional Use

In settings like conference rooms or teaching spaces, the wireless remote allows a presenter to easily deploy the projector at the start of a session and retract it afterwards, keeping the equipment secure and the space clear. The different travel options (0.8m, 1m, 1.5m) allow selection based on the specific ceiling height and desired screen placement.

Everyday Home Use

For a home cinema setup, the lifting hanger enables a clean, furniture-free installation. The projector can be stored flush against the ceiling, preserving floor space and reducing the risk of accidental damage. The remote control offers convenient integration into a home entertainment routine.

Benefits and Buying Value

The value of this product lies in its dedicated function, mechanical specifications, and the convenience offered by its motorised operation.

Reuse and Low Maintenance

As a permanently installed piece of hardware, it is designed for repeated use over time. The synchronous motor and remote control system provide a consistent operating method without the wear associated with manual adjustments. Maintenance would typically involve ensuring the mechanical travel path remains clear.

Why Choose This Product

This electric hanger is suited for users seeking a specific, motorised solution for a ceiling-mounted projector. Its key differentiators are the choice of travel lengths, the 10kg load capacity, the wireless remote control, and the 10cm ultra-thin chassis design. It is a functional choice for those who have identified a need for automated vertical adjustment of their projection equipment.
