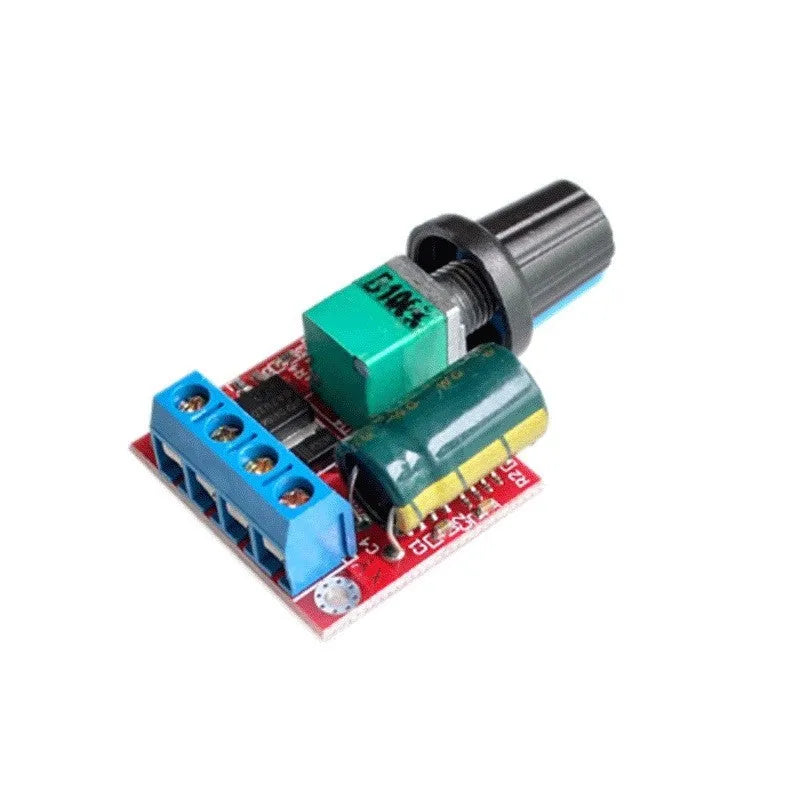

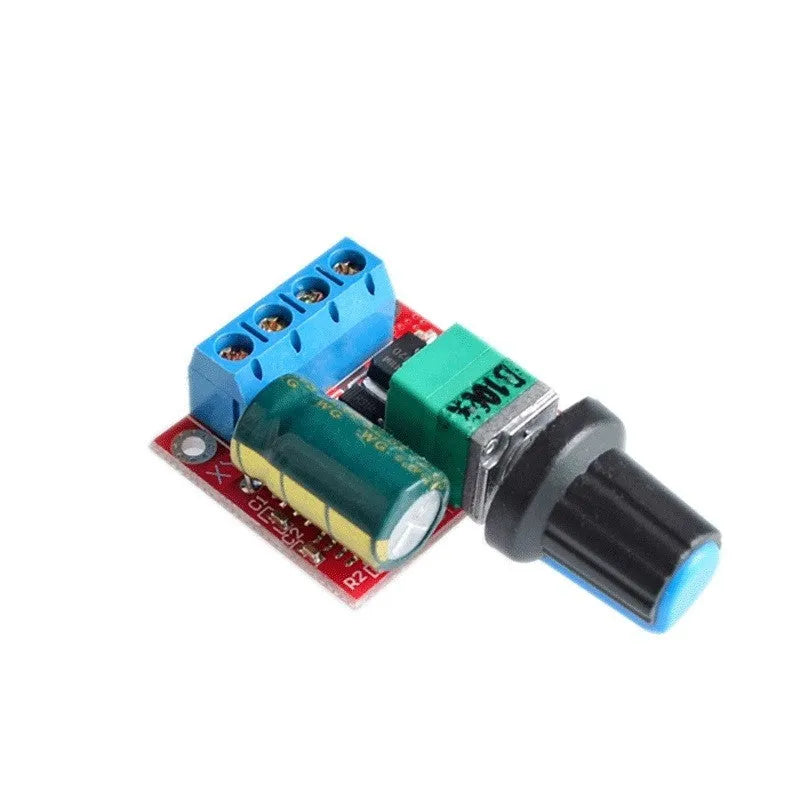

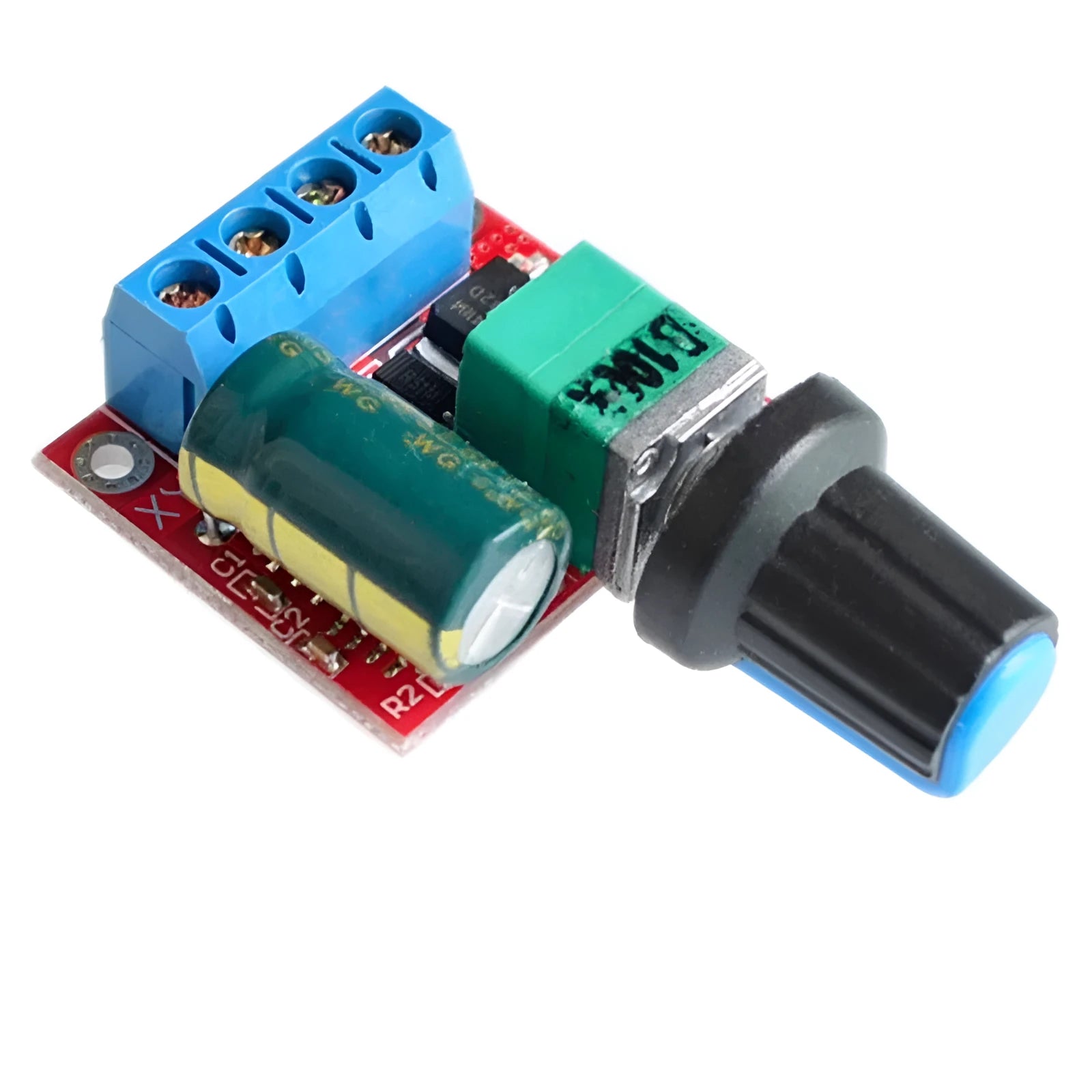

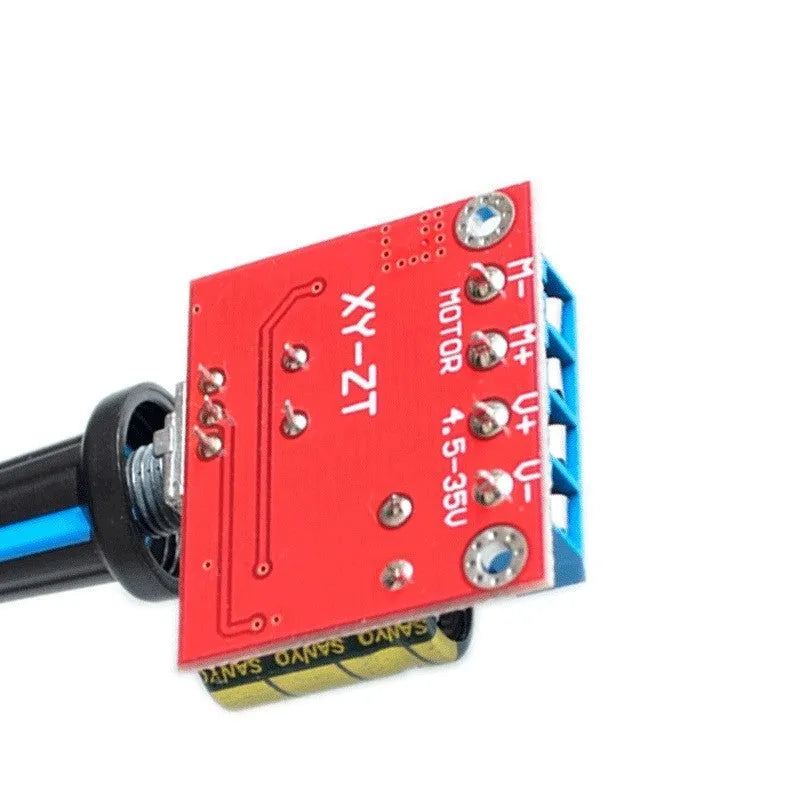

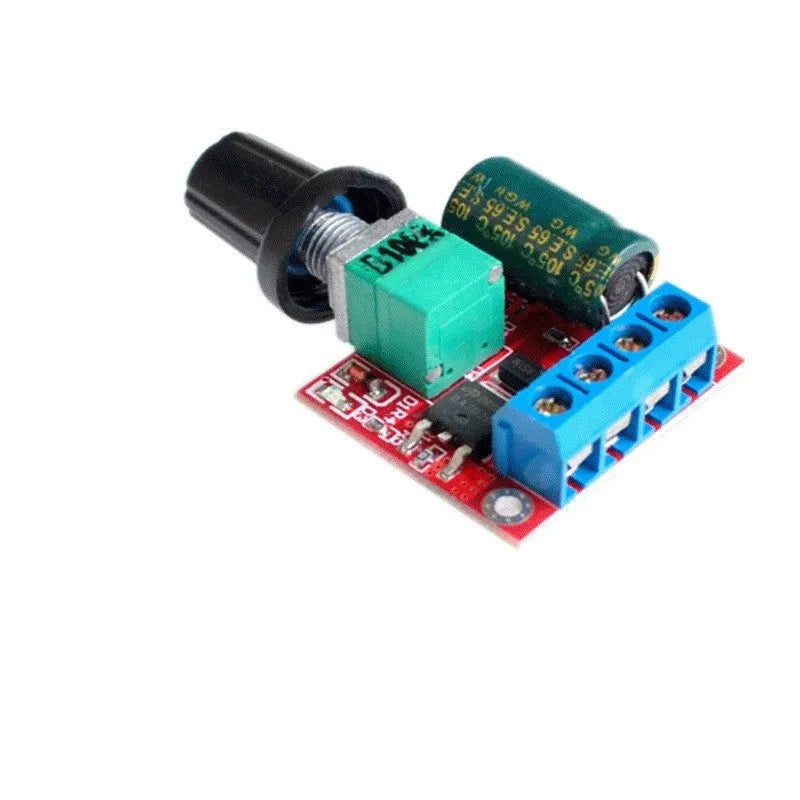

DC Motor Governor with 5V to 35V Speed Regulation and 5A Switch Function

This PWM DC motor governor provides precise speed control for DC motors in DIY electronics, robotics, and small machinery applications. Operating across a broad voltage range from 4.5V to 35V DC, it delivers up to 5A output current with 90W power handling capacity. The compact design measures just 30mm long by 26mm wide (excluding the adjustment knob) and 14mm high, making it suitable for space-constrained projects. With 20kHz PWM frequency and 1% to 100% duty cycle adjustment, this governor enables fine-tuned motor control while maintaining efficiency with only 7μA standby current consumption.

Features and Construction

The governor is designed for straightforward integration into DC motor control systems. Its compact dimensions allow installation in various project enclosures while providing full-speed regulation capabilities. The unit requires DC power input only and includes protection features against common connection errors.

Material and Build

Constructed from standard electronic components for PWM regulation circuitry, this governor maintains reliable operation within its specified voltage and current ranges. The adjustment potentiometer provides smooth speed control without sudden jumps in motor RPM. The build quality supports the 90W output specification without overheating concerns when operated within parameters.

Size and Practical Fit

Measuring 30mm in length, 26mm in width (not including the adjustment knob handle), and 14mm in height, this governor occupies minimal space in project builds. The compact footprint allows installation alongside motors and other control components without requiring extensive panel space. The exclusion of the adjustment knob from the main body dimensions provides flexibility in knob selection based on user preference.

Uses and Placement

This governor serves multiple applications requiring variable speed control of DC motors. Its voltage and current specifications make it suitable for hobbyist projects through to small industrial applications where precise motor speed adjustment is necessary.

Event or Professional Use

In professional settings, this governor can control conveyor belt speeds, fan speeds in ventilation systems, or motor speeds in manufacturing equipment. The 5A output capacity handles most small to medium DC motors found in industrial applications, while the 20kHz PWM frequency ensures smooth operation without audible motor whine. The broad 4.5V to 35V operating range accommodates various motor voltage requirements without needing multiple controllers.

Everyday Home Use

For home workshops and DIY projects, this governor enables speed control for power tools, hobby motors, robotics projects, and ventilation fans. The straightforward adjustment via potentiometer knob makes it accessible for users without advanced electronics knowledge. The protection against reverse polarity connection prevents accidental damage during setup, while the DC-only input requirement ensures safe operation when powered by batteries or DC adapters.

Benefits and Buying Value

This motor governor provides practical advantages through its specifications and design considerations. The combination of voltage range, current capacity, and compact size creates a versatile tool for motor control applications.

Reuse and Low Maintenance

The solid-state design with no moving parts (beyond the adjustment potentiometer) ensures reliable operation over time without requiring maintenance. The governor can be reused across multiple projects as motor requirements change, thanks to its broad compatibility range. The 7μA standby current minimises power waste when the system is idle but powered.

Why Choose This Product

This governor offers specific advantages for users needing precise DC motor speed control without complex programming or setup. The 1% to 100% duty cycle provides fine-grained speed adjustment unavailable in simpler on/off controllers. The 90W output capacity handles most small to medium DC motors while the compact dimensions facilitate integration into existing projects. The protection against common connection errors reduces the risk of accidental damage during installation.
